DAG Transfer Engine

Released in v4.0.0 (2026-05-24). Status: production.

Router-selected single-file transfers, batches, non-dry-run sync, segmented downloads and same-provider copies schedule through one shared, provider-agnostic node-graph engine. Outside it stay plain WebDAV and Nextcloud single-file downloads, which the router sends to the provider-direct path; any single-file transfer forced onto that path with --transfer-engine legacy or AEROFTP_TRANSFER_ENGINE=legacy; the CLI's --partial resume path; cross-profile transfers, which download to a temporary file and upload from it; and local-to-local copies. A sync dry-run only plans, so it builds no graph. This page is the long-form architectural walk-through. The summary tier lives next to the code at docs/DAG-TRANSFER-ENGINE.md.

At a glance

One-line summary

AeroFTP builds a typed directed acyclic graph per transfer, dispatches nodes through a shared resource manager + AIMD backpressure controller, and binds each node kind to provider I/O through a thin runner. Capabilities pick the shape; the executor enforces the budget.

The engine ships as three layers:

Layer	Responsibility
transfer_dag core	Pure, provider-free graph engine: executor, graph, resources, AIMD, observers.
TransferDagBuilder	Single source of truth for every production graph shape.
Runners	Thin bridges (single-file, batch, sync, copy, ranges) that bind nodes to provider I/O.

The CLI (aeroftp-cli), the desktop app and the MCP server (aeroftp-mcp) share these runners where their call paths reach them. Wire behavior still depends on the provider, the operation and each surface's adapter, so it is not identical across surfaces by construction.

Why a DAG engine

What the engine is for

A file-transfer client cannot add channels: the protocol, the server and the link decide how many are useful. Parallelism on a fixed pipe explains what the engine does inside that budget, where it helps, where it costs, and which direct routes exist.

Three converging needs justified the convergence:

1. One lifecycle model. Before v4.0.0 each transfer surface ran its own ad-hoc orchestrator with its own idea of start, completion and failure. The engine gives every graph one node lifecycle (DagObserver) and one failure model. Byte progress still comes from the surface adapters and the provider callbacks, not from node events.

2. Capability-aware shape. A provider that advertises multipart_upload, server_side_copy, or strict_concurrent_range_download deserves a different transfer shape than one that does not. Pre-DAG, that choice was buried inside provider.upload() / provider.download() and the runner could not arbitrate. With the shaped builders the engine sees the capability snapshot and picks the right shape per transfer.

3. One scheduler, one place to fix. Every scarce resource (file slot, checker slot, chunk slot, http slot, api slot, disk read, disk write, hash slot, part-buffer memory) lives in transfer_dag/resources and is governed once for every transfer. Backends pick what they reserve (a one-line ResourceRequest per node kind); they no longer own a scheduler of their own.

The seven-node envelope

Every shape in the engine carries the same structural envelope:

Discover(Local|Remote)
       │
       ▼
AcquireResource
       │
       ▼
   transfer core
       │
       ▼
VerifyChecksum
       │
       ▼
PreserveMetadata
       │
       ▼
  CommitTemp
       │
       ▼
 EmitProgress

• Discover{Local,Remote}: a structural anchor in the current runners. The size comes from the listing or from the caller's own stat and travels with the file, so no per-file probe is needed. Sync no longer has a global discover/compare prefix in the graph: the scan and the plan run before it, and each per-file subgraph's discover node is a no-op.

• AcquireResource: a structural anchor. Reserved for the future resume-checkpoint fetch; runs as a no-op today.

• transfer core: the only nodes that perform real I/O. The capability snapshot picks which kind: DownloadFile, UploadFile, UploadPart × N, DownloadRange × N, ServerSideCopy, or a DownloadFile + UploadFile pair for the no-server-side-copy fallback. See Transfer-core shapes.

• VerifyChecksum: joins every transfer-core node, so it cannot run until the last part or segment lands. On the durable single-file multipart path it checks that every part receipt is present and that the local source is unchanged, then records a Verified fact. It is not a remote checksum comparison, and on the other paths it is structural.

• PreserveMetadata: restores the remote mtime on a downloaded file. A no-op on the upload direction; the upload's mtime is the one the remote backend assigns.

• CommitTemp: finalize the transfer atomically. For a single transfer core this is a no-op (the provider's own .aerotmp finalize is internal). For multipart it submits the ordered receipts to complete_multipart_upload; on the durable single-file path it refuses to do so until Verified is recorded.

• EmitProgress: terminal node. Its completion is the signal a DagObserver maps onto the GUI complete event or the CLI's final result line.

Only the transfer-core nodes carry scarce resources. The structural anchors hold no ResourceRequest, so the graph cannot deadlock against its own budget.

Transfer-core shapes

The shaped builders pick the transfer-core shape per transfer from the provider's TransferCapabilities and the source object's size.

Shaping. Before the first byte moves, the builder reads the provider's capabilities and the object size and fills the transfer-core slot with one of six shapes. The envelope around it is the same for every shape, and only the blue nodes move payload. The grey dots stand for the envelope nodes on either side of the core (Acquire before it, Verify after it).

Single transfer core

A DownloadFile (download direction) or UploadFile (upload direction) below the multipart-capability threshold. Reserves one file_slot, optionally one api_slot on rate_limited_api providers.

… → AcquireResource → DownloadFile → VerifyChecksum → …
                       (or UploadFile)

Multipart upload fan-out

For an upload above the provider's multipart threshold on a provider that gives each part an independent worker (S3, Backblaze B2, Azure Blob, Nextcloud chunked v2, Dropbox, Box, Filen, Drime, Uploadcare). The transfer core fans out into N UploadPart nodes, one per chunk. Each part node reserves one chunk_slot, so the shared chunk budget governs how many parts upload in parallel. A provider whose upload session takes parts only in order (Google Drive, OneDrive, Yandex Disk) declares one chunk slot and gets a strict chain instead. A provider that allows parallel parts but cannot give each one an independent worker (pCloud today) keeps the fan-out shape and runs the parts one at a time on its single session: N part nodes are N scheduled operations, not N concurrent requests. VerifyChecksum joins every UploadPart node, so it cannot fire until the last part lands.

                       ┌→ UploadPart 1 ─┐
                       ├→ UploadPart 2 ─┤
… → AcquireResource ──┼→ UploadPart 3 ─┼→ VerifyChecksum → …
                       ├→ UploadPart 4 ─┤
                       └→ UploadPart 5 ─┘

Part-number to node-id mapping is a dense, 1-based HashMap built at runner setup time. The receipts are sorted by part_number ascending before submission to complete_multipart_upload, matching the S3 / B2 contract. The protocol cap (S3 and B2 both ceiling at 10000 parts) is enforced by the builder profile, not the runner.

Server-side copy

For copies between two keys on the same provider when the backend advertises server_side_copy (S3 x-amz-copy-source, B2 b2_copy_file, WebDAV COPY, ImageKit copyFile, plus 14 other native providers). The transfer core collapses into a single ServerSideCopy node that holds only an api_slot. No disk I/O, no file slot, no chunk slot: the server moves the bytes.

… → AcquireResource → ServerSideCopy → VerifyChecksum → …

When the capability is absent the graph degrades honestly:

… → AcquireResource → DownloadFile → UploadFile → VerifyChecksum → …

Two real transfers, two file slots, two real round-trips. When the capability is advertised but the server rejects the native copy with a recoverable error, the copy node completes as an observed fallback and the same two-node payload graph runs. Permission, not-found, authentication, quota and transport errors fail the copy instead of falling back.

Segmented intra-file download

When strict_concurrent_range_download is available the segmented download runner builds a fan-out of DownloadRange nodes with no inter-segment dependencies. Each node reserves one range_chunk resource (chunk + http + disk_write = 1 each), so the shared chunk / http / disk-write budget governs how many ranges run at once. The node id zero-based ordering matches the range plan, so the runner indexes the plan by node.id.

DownloadRange 0 ─┐
DownloadRange 1 ─┤
DownloadRange 2 ─┼→ (all converge in a single .aerotmp file)
DownloadRange 3 ─┤
DownloadRange 4 ─┘

The segmented download is intra-file (downloading one object via N parallel Range requests against the same key), distinct from the batch fan-out (downloading N different objects concurrently). Both benefit from the same resource manager.

Builder methods

The builder lives at src-tauri/src/transfer_dag/builder.rs and is the single source of truth for every shape:

Builder method	Used by	Outputs
shaped_file(direction, caps, size)	Single-file runner (GUI and CLI), and every file the batch and sync streaming frontier admits	ShapedFileDag (single core, N × UploadPart, or an ordered part chain)
shaped_copy(caps)	execute_copy_dag (GUI copy, CLI cp, CLI WebDAV COPY)	CopyDag (server-side or download+upload)
shaped_ranges(N)	providers::multi_thread::run_ranges_via_graph	ShapedRangesDag (N × DownloadRange)
single_file, from_batch, from_batch_shaped, from_sync_plan, from_sync_plan_shaped	No production caller since the streaming frontier (DAG-P2-04) builds one shaped_file subgraph per admitted file	Whole-job graphs, kept for tests

With TransferCapabilities::default() the shaped builders reproduce the legacy single-transfer-core shape byte-identically. The shaped path is therefore safe to wire as the only production builder; only the capability set changes the shape.

Multipart orchestration in detail

The multipart fan-out is the most active part of the single-file runner. On the durable single-file path each upload goes through a checkpointed lifecycle:

1. Begin, lazily. The first UploadPart node to run opens the session with begin_multipart_upload; the others reuse the handle.
2. Send each part from disk. The executor first acquires the part's disk and buffer-byte lease, then hands the part to the provider as a PartBody disk slice through upload_part_body. Providers that can stream a part (WebDAV and Nextcloud, Dropbox, Google Drive, OneDrive and others) read it one bounded window at a time; providers that must own the whole part to hash, sign or encrypt it (S3 signed payloads, B2, Box, Azure, MEGA, Filen) hold it in memory, inside the same lease.
3. Checkpoint each receipt. Every successful receipt is written atomically to a durable checkpoint before its node completes.
4. Verify. VerifyChecksum compares the checkpoint with a fresh look at the local source (every part present, source unchanged) and records Verified.
5. Commit, fail-closed. CommitTemp sorts the receipts by part number, calls complete_multipart_upload only if Verified is recorded, and records Committed before the graph can report success.

Completion, durable single-file multipart. Each part's receipt reaches the checkpoint before the part completes. VerifyChecksum records Verified only when every receipt is present and the local source is unchanged, and CommitTemp completes the upload only after that fact exists. A failure keeps the session and the receipts, so a restart sends only the missing parts. Multipart inside a batch follows its own begin, complete and abort lifecycle without this checkpoint.

Failure and restart

A failed or cancelled durable upload keeps its session and its valid receipts. The checkpoint identity binds the local path, size and mtime, the provider, the endpoint account, the remote path and the part layout, so a matching restart restores only validated receipts and sends only the missing parts. A conservative scavenger aborts a matching session only after its TTL has expired, and removes the record only after the abort succeeds.

Multipart inside a batch shares the part layout and the begin, part and complete steps, but not this checkpoint: there a failed file is aborted once, after its in-flight parts have drained.

Resource governance

The resource manager arbitrates dispatch against a per-operation budget:

Class	Meaning
file_slots	Concurrent whole-file transfers.
chunk_slots	Concurrent multipart parts or range segments.
http_slots	Concurrent HTTP request bodies in flight.
disk_read_slots	Concurrent fs reads (one per UploadPart chunk read).
disk_write_slots	Concurrent fs writes (one per DownloadRange write).
api_slots	Rate-limited API requests.
checker_slots	Concurrent pre-transfer checks (--checkers).
hash_slots	Concurrent hashing.
buffer_bytes	Part memory, in 64 KiB credits from one process-wide pool.

Each ResourceRequest is a one-line declaration on a node kind:

// Whole-file upload / download: one direction of local disk only.
ResourceRequest::upload_file()    // { file_slots: 1, disk_read_slots: 1, .. }
ResourceRequest::download_file()  // { file_slots: 1, disk_write_slots: 1, .. }

// Multipart upload part: chunk slot, disk read, and its part buffer.
ResourceRequest::upload_part(buffer_bytes)
// = { chunk_slots: 1, disk_read_slots: 1, buffer_bytes, .. }

// Segmented range download:
ResourceRequest::range_chunk()    // { chunk_slots: 1, http_slots: 1, disk_write_slots: 1, .. }

// Server-side copy: API only, no disk, no buffer.
ResourceRequest::server_copy(api_slots)

The executor only dispatches a node when:

1. Every predecessor completed.
2. The node's ResourceRequest can be satisfied from the manager's current budget.
3. The AIMD controller's per-class dispatch target permits one more node of this kind.

Dispatch. A ready node starts only when the operation's resource budget and the AIMD target for its class both have room. The channels behind them are fixed by the provider's session ceiling. With AIMD enabled (the default), a congestion signal halves the width and each quiet stretch adds the regrowth step back (one by default); nothing raises it past the ceiling.

Many files: the streaming frontier and the shared governor

Batches and sync do not build one graph for the whole job. Work items stream from the source (the entry list, or the sync plan once the scan has finished) into a bounded backlog, 10,000 items by default (--max-backlog), which pauses the source when full. At most a window of file slots plus a little headroom is admitted at a time; each admitted file gets its own shaped_file subgraph, which is dropped when the file is done. Resident graph memory therefore follows the active window, not the size of the job. A failed file is recorded without stopping the others, and sync deletions start only after the last transfer.

Above every job sits one process-wide governor. An endpoint lease keyed by protocol, host and account caps concurrent jobs per endpoint (256 by default, foreground jobs first, a waiting background job served after eight bypasses); it counts jobs, not network connections. The user speed limit (--limit-rate, --bwlimit, the GUI setting) arms one upload bucket and one download bucket shared by all jobs, AEROFTP_GLOBAL_BANDWIDTH_BPS adds an optional cap over both directions combined, one memory pool holds every multipart part buffer, and each local disk device has its own read and write slots (8 per direction by default). The governor lives in one process: the desktop app and a separate CLI process do not share it.

Many files. Only files admitted into the active set exist as graphs: each subgraph is built on admission and dropped when the file is done, so resident graph memory follows the active window, not the size of the job. Every job also draws from one process-wide governor, so concurrent jobs share endpoint slots, the speed limit, part memory and disk.

AIMD backpressure

Where a path exposes real concurrency, an AimdController governs four classes (file, chunk, http, api). With AIMD enabled, the default (an operator can switch it off), it classifies failures into three buckets:

• Congestion signal (429, 503, request timeout, connection reset, an FTP 421 too-many-connections refusal): the per-class dispatch target halves. A server Retry-After holds regrowth for its cooldown.
• Non-congestion failure (InvalidPath, PermissionDenied, AuthenticationFailed, …): the target is left untouched. The failure is not a load signal.
• Quiet stretches: after each quiet window without congestion the target grows by the regrowth step (one by default, operator-tunable), up to the ceiling. After a congestion event regrowth stops one below the level that failed until the recovery window has passed.

On a fresh endpoint, or once its cached profile has expired, the controller starts every class at its ceiling, so a transfer with no congestion dispatches every node immediately, identical to the pre-AIMD path. An endpoint that congested recently seeds the next job below the ceiling, as the next paragraph explains. It only ever shrinks the in-flight set under a real congestion signal, where a smaller dispatch target is the safer, faster choice.

Within one process, the target an endpoint was pushed down to seeds the next job to that endpoint for ten minutes (DAG-P2-06). From the release after 4.2.1, only congestion and the recovery after it write that memory: a loop that also learned from job throughput spiralled down and was removed (aeroftp#1021). Version 4.2.1 and earlier still have that loop. Nothing persists across processes. AIMD is a congestion controller, not a search for the fastest width: a slowdown that produces no classified signal does not move it.

Adapting, schematic. With AIMD enabled (the default), the controller starts at the effective ceiling, or below it when a recent profile for the endpoint is cached, and never moves above it. A congestion signal halves the width and each quiet window adds the regrowth step back, one by default. Regrowth stops one below the level that failed until the recovery window has passed, and a server's Retry-After holds regrowth for its cooldown.

Provider trait surface

A provider participates in the engine by advertising its capabilities and implementing the matching trait methods. Three families:

Capability advertisement

fn transfer_capabilities(&self) -> TransferCapabilities { … }
fn supports_server_side_copy(&self) -> bool { … }

The capability snapshot is read once per transfer, before the graph is built. Providers populate it from their wire-protocol knowledge (S3 advertises multipart + server-side copy; SFTP advertises file parallelism + session pool; WebDAV advertises COPY + sometimes range download, etc.).

Multipart upload

async fn begin_multipart_upload(
    &mut self,
    remote_path: &str,
    total_size: u64,
    content_type: Option<&str>,
) -> Result<MultipartHandle, ProviderError>;

async fn upload_part(
    &mut self,
    handle: &MultipartHandle,
    part_number: u32,
    data: Vec<u8>,
) -> Result<UploadedPart, ProviderError>;

// What the runner calls. The default materializes the slice and
// delegates to upload_part; streaming providers override it and
// return true from multipart_streams_part_body().
async fn upload_part_body(
    &mut self,
    handle: &MultipartHandle,
    part_number: u32,
    body: PartBody,
) -> Result<UploadedPart, ProviderError>;

fn multipart_streams_part_body(&self) -> bool;

async fn complete_multipart_upload(
    &mut self,
    handle: MultipartHandle,
    parts: Vec<UploadedPart>,
) -> Result<(), ProviderError>;

async fn abort_multipart_upload(
    &mut self,
    handle: MultipartHandle,
) -> Result<(), ProviderError>;

MultipartHandle is opaque: upload_id (whatever the backend uses to identify a session: S3 UploadId, B2 fileId, …) plus remote_path (so the runner can correlate handles with shaped-graph nodes).

Server-side copy

async fn server_side_copy(&mut self, from: &str, to: &str)
    -> Result<(), ProviderError>;

Default delegates to the legacy server_copy. New code reaches for server_side_copy because it matches the TransferCapabilities::server_side_copy slot one-to-one.

The default implementations of every method above return ProviderError::NotSupported, so a provider that never advertises the capability never reaches them.

What changed in v4.0.0

Before v4.0.0	After v4.0.0
Flag-gated DAG path: AEROFTP_TRANSFER_ENGINE_DAG_*	DAG path unconditional, three env vars removed.
Hand-rolled JoinSet sliding-window batch orchestrator	execute_batch_dag is the only batch path.
Multipart upload was internal to provider.upload()	Multipart is an engine concern: N UploadPart nodes governed by the shared chunk budget.
Server-side copy was an ad-hoc per-provider method	One ServerSideCopy node, one api_slot, one shape.
Five distinct routing shims (if dag_enabled { … })	The three rollout flags are gone. Batch, sync, copy and segmented download go through the shared core. A single-file legacy override and a few adapters remain.

Source map

File	Role
src-tauri/src/transfer_dag/mod.rs	Public exports.
src-tauri/src/transfer_dag/builder.rs	All eight shape constructors.
src-tauri/src/transfer_dag/executor.rs	execute_dag + dispatch loop.
src-tauri/src/transfer_dag/capabilities.rs	TransferCapabilities definitions.
src-tauri/src/transfer_dag/resources.rs	Budget + request + manager.
src-tauri/src/transfer_dag/adaptive.rs	AIMD controller + congestion classifier.
src-tauri/src/transfer_dag/observer.rs	Observer pipeline (Noop / Gui / Journal / Ordered).
src-tauri/src/transfer_dag_single_file.rs	Single-file runner.
src-tauri/src/transfer_dag_batch.rs	Batch runner.
src-tauri/src/transfer_dag_sync.rs	Sync runner.
src-tauri/src/providers/multi_thread.rs	Segmented download runner.
src-tauri/src/transfer_dag/work_source.rs	Streaming frontier for batch and sync.
src-tauri/src/transfer_dag/governor.rs	Process-wide governor: endpoint leases, bandwidth, buffer pool, disk slots.
src-tauri/src/transfer_dag/checkpoint.rs	Durable multipart checkpoint.
src-tauri/src/transfer_multipart.rs	Shared multipart layout and PartBody.
src-tauri/src/transfer_router/hints.rs	Single-file engine routing table.

The code lives in the aeroftp repo. The summary that tracks the code lives at docs/DAG-TRANSFER-ENGINE.md.

Measured results, September 2026

Campaign results. Each table names the date, the link, the binary and the number of repetitions. A single run stays a single run. Two results from this campaign are omitted on purpose: a download "resume" whose file had already finished, and a claimed 17 percent upload gain on one mixed tree that a later pass measured at -2.0 points against a 13.4 percent noise floor.

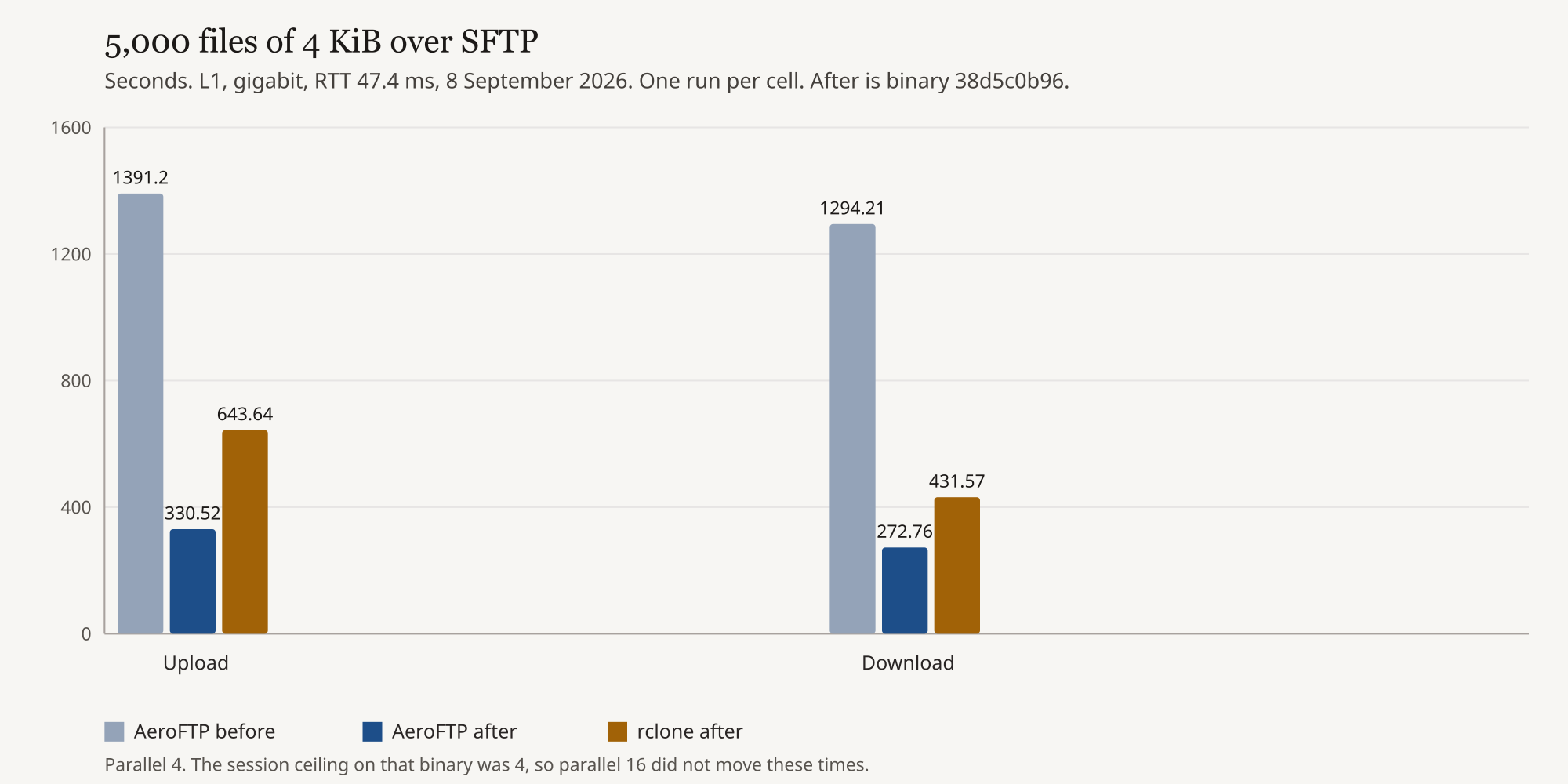

SFTP, 5,000 files of 4 KiB

Wired gigabit, RTT 47.4 ms, 8 September 2026, --parallel 4. One run per cell. Before is 3417fcb46. After is 38d5c0b96, the build that reuses the SFTP session across the tree. rclone on the same link barely moved, which is the check that the window itself did not drift.

Operation	AeroFTP before	AeroFTP after	rclone before	rclone after
Upload	1391.20 s	330.52 s	687.47 s	643.64 s
Download	1294.21 s	272.76 s	421.92 s	431.57 s

The same binary at --parallel 16 stayed flat (upload 316.02 s, download 264.41 s) because the session ceiling on that build was 4. rclone at 16 streams went to 344.00 s upload and 109.89 s download. Since 4.2.0 the ceiling is 16 (aeroftp#761) and the default parallelism is still 4, so this table is the binary with the ceiling of 4, not a timing of today's ceiling. On that build, at 16 streams, the download was still behind rclone (264 s against 110 s) and the upload had moved ahead (316 s against 344 s). With the ceiling raised and the stat and open round trips overlapped (aeroftp#782), the download at --parallel 16 measured 101.54 s against rclone's 107.5 s in the same window, two runs; the review record has every run.

S3 and WebDAV, same day, two repetitions

Same station and link, 5,000 files of 4 KiB, two interleaved repetitions. Each uploaded tree was read back by the other tool. The quiet-window spread on AeroFTP was 3.3 percent on S3 and 4.9 percent on WebDAV. A third binary, 7336fa6b5, removed an extra size probe that had doubled small-file downloads on the middle build (S3 download mean 68.35 s, then 126.35 s, then 68.54 s). Upload did not move.

Cell	AeroFTP upload, two runs	rclone upload, two runs
S3, before 3417fcb46	62.98 s, 66.19 s	119.79 s, 114.23 s
S3, third 7336fa6b5	70.49 s, 65.15 s	124.37 s, 123.62 s
WebDAV, before	62.27 s, 67.16 s	199.81 s, 191.58 s
WebDAV, third	62.35 s, 60.78 s	195.16 s, 198.24 s

Upload of this tree is about twice rclone on S3. On WebDAV the before build is about 3.0 times rclone and the third build is about 3.2 times.

One resume the review kept

5 September 2026, the before build 3417fcb46, a laptop on Wi-Fi over a wide-area link of about 53 ms, one 300 MiB S3 upload. The kill arrived at 60 s of a transfer that takes about 128 s. AeroFTP resumed in 82.8 s. rclone started over and took 128.4 s. One run. The download rows from that session are omitted: the download had already finished.

Not a current S3 download time

On 19 September a 300 MiB S3 download read 31.51 s against rclone at 16.95 s while the client announced four streams and used one. The size probe read content_length from a HEAD response, which is 0. Those seconds describe that broken path. They are not a before and they are not an after.

See also

• Provider Reference: capability matrix per backend.
• Wrapper Stack: how AeroVault and rclone-crypt overlays integrate with the engine.
• Contributing → Architecture: developer-facing layout walk-through.
